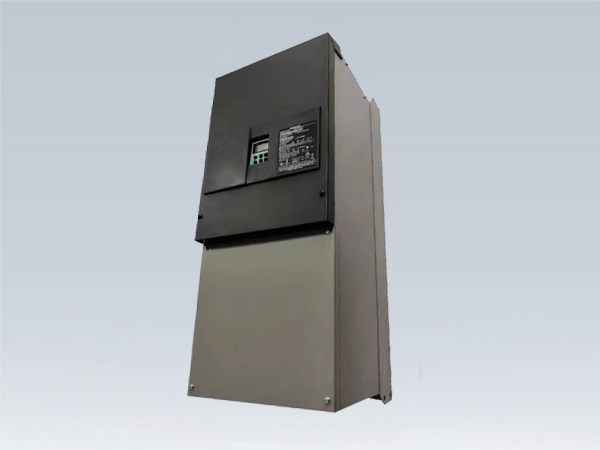

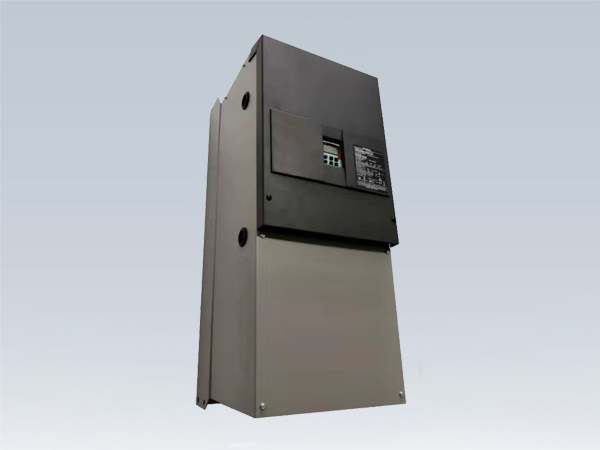

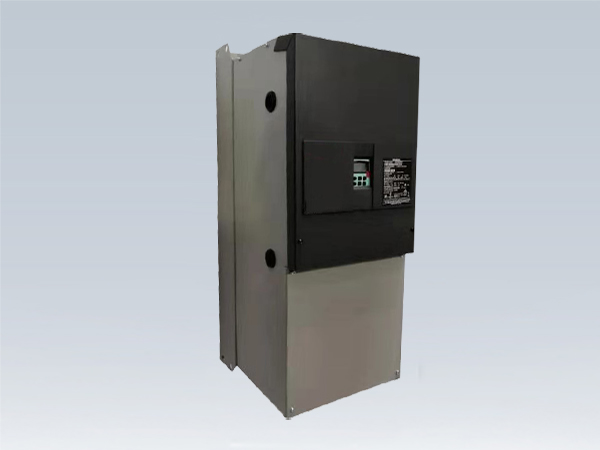

西门子6RA80 直流调速器小功率功率扩容一体机
额定参数Ratings
额定电流Current ratings
400A with overload and 420A no overload. @ 500Vdc
600Awith overload and 650A no overload. @ 500Vdc
800A with overload and 900A no overload.@ 500Vdc
额定电压Voltage ratings :
380 - 500Vac
690Vac/600Vac UL.
过载能力Overload:
150% for 30 seconds
200% for 10 seconds.
优点：
同功率下,比SIEMENS系列更紧凑
More compact than SIEMENS Size H of the same current rating
具有与主流驱动器的竞争力
Comparable to major competitors’ drives
成本效益更好A more cost effective drive
同样的控制,同样的特点, …
Same control board, same features, …
ICP减少20%到50%
ICP reduced by 20% to 50%+
